Bean Bag Prototype for Lens Support

May 10th,2008

I sat down and drew up a bean bag design and got a “Prototype” stitched. Here is how it looks as of now.

No fancy material, just out of thin cotton as of now just to get the things right. Final colour would be dull Khaki/ Jungle Green/ Camo and material Nylon/ Canvas/ Rexine and a combo of sorts. Bag was filled with Rice just for this one time 🙂 Eventually will use for poly/ plastic beads as fill in.

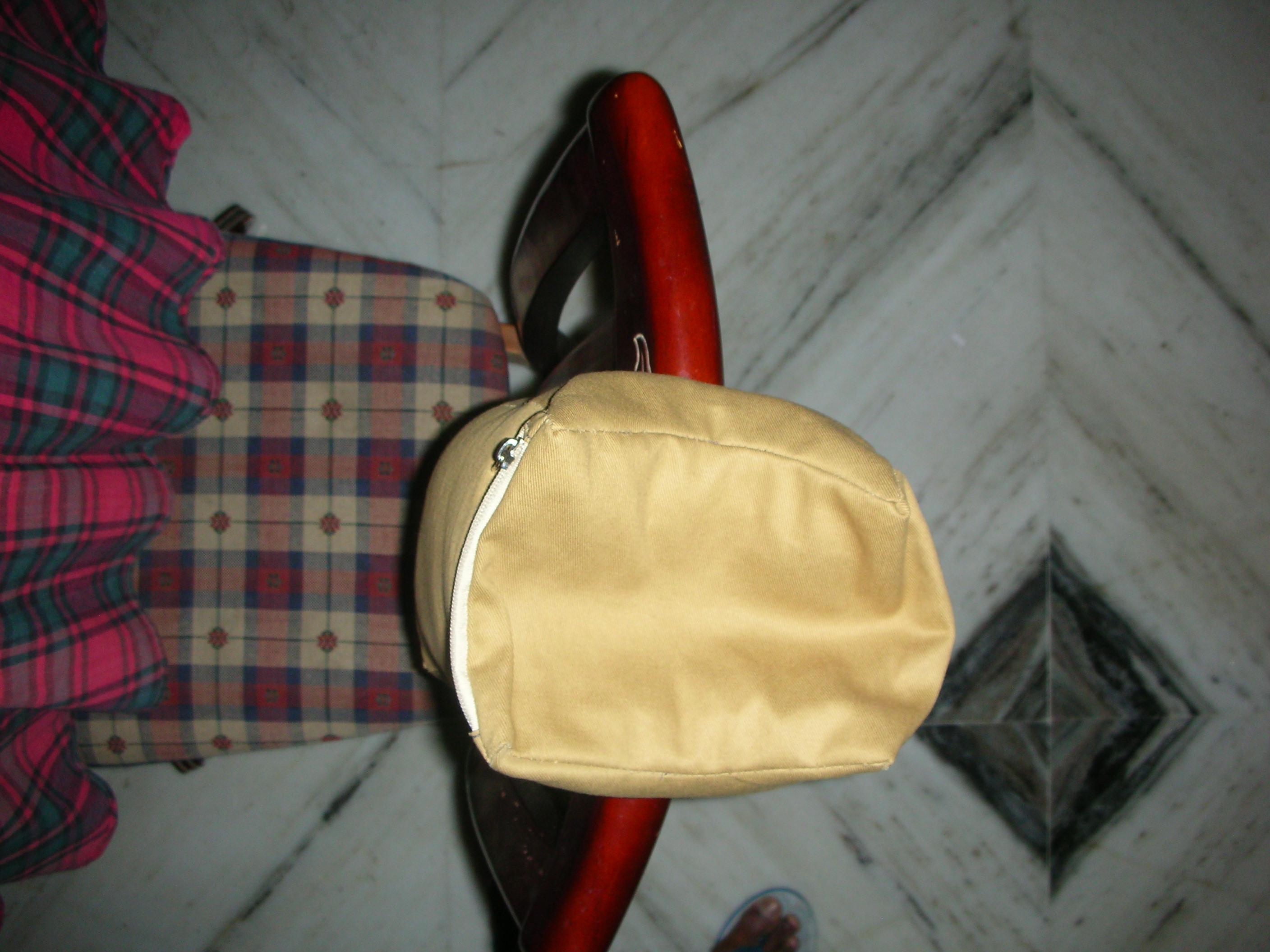

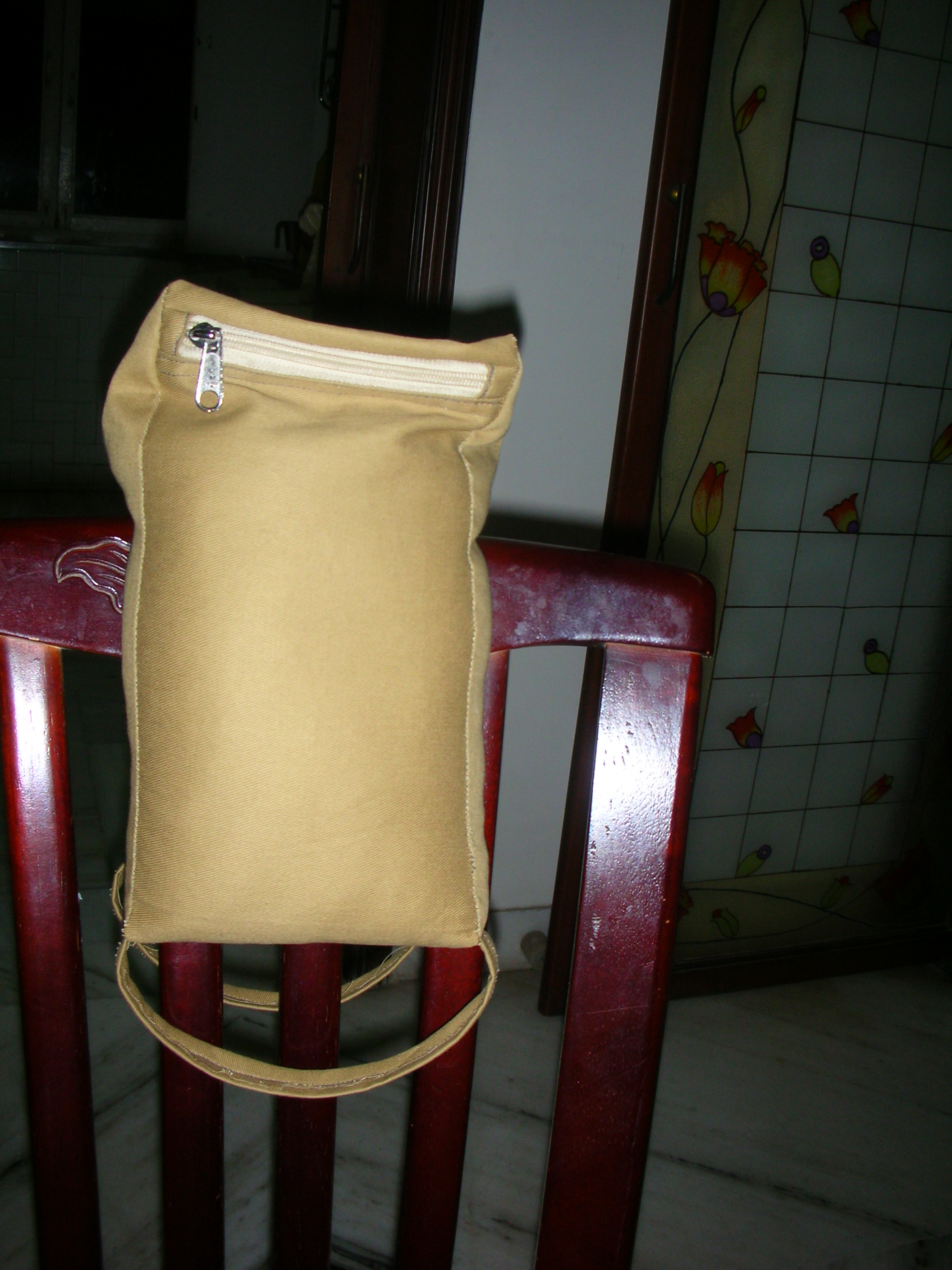

On the left is as seen from the outside , Right pic is the top of the bean bag. Lens would be laid from right to left with reference to the top view pic.

no images were found


no images were found

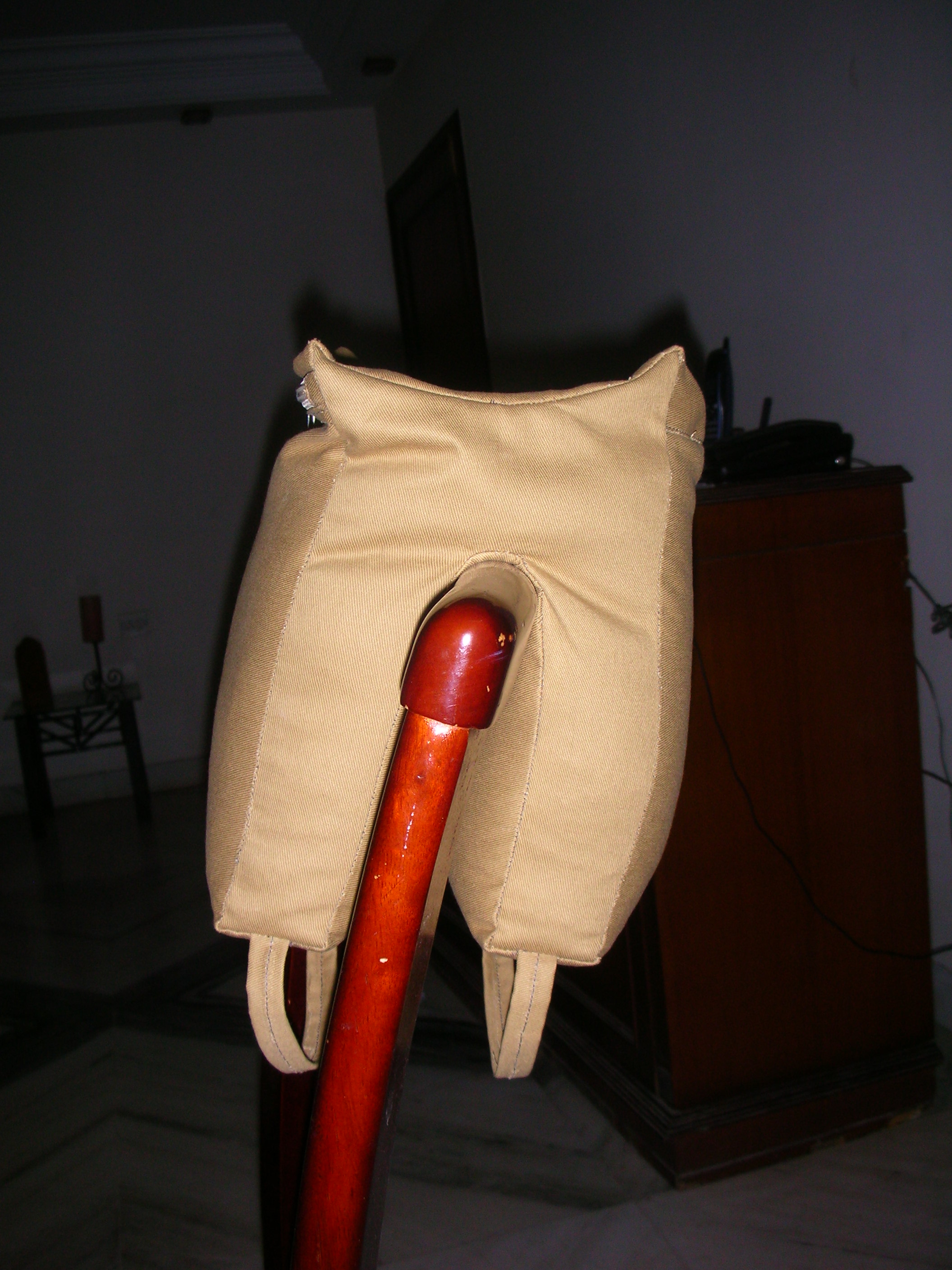

The bag would straddle the car window like pic below.

no images were found


Couple of things I need to modify

* Broaden the width of the top

* Move the Zipper to the bottom

* Give the top a curvature to cradle the lens along the length

* Engineer a removable strap to hold the lens securely to the bean bag.

Equipment

6 responses to “Bean Bag Prototype for Lens Support”

  1. Filled with Rice instead of beans, just add some Rajma to it. Then in an emergency it would make a great meal!

    Cheers…Kishore

    Rajma works well for lens stability.

  2. If you add a panning plate or some kind of support on the top where one can attach a mounting plate, it will be a great design. Zipper on the bottom is a great move. Filling it with plastic beans will make it lighter, hence less stable. Best will be to fill it with rice/rajma.

  3. Hi Krishnan

    Any further thoughts on the bean bag design? Am planning a new one for my Canon 600 mm IS. Could you please offer some advise on the length of the side sections and the width & depth of the top section?

    Pl reply to my above mail ID

    Cheers

    Rajarshi
